Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

  • 1
  • 2

Brand Name : TAC OEM ODM

Model Number : IFM12.8V-70AH-E2C

Certification : MSDS REACH ROHS

Place of Origin : SHENZHEN

MOQ : 50 PCS

Price : USD 300-500

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 units/month

Delivery Time : 7-25 days after order confirm

Packaging Details : 1pcs for one bag with UN38.3

material : lithium battery

capacity : 70ah

voltage : 12v

circle life : 2000 times

warranty : 12 months

housing : abs+pc

color : blue or black

application : ESS

Contact Now

Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

Feature for Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

1. The rate capacity:70Ah,the voltage:12V

2. The size of the battery pack:196mm*166mm*175mm

3. High charging & storage efficiency
4. Lighter weight, with the best power-to-weight ratio
5. No memory effects
6. Low self-discharge rate, less than 3% monthly

Specification for Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

No.

Item

General Parameter

Remark

1

Rated Capacity

70Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

67.2Ah

3

Nominal Voltage

12.8V

4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 10.0V

◆Temperature:20±5℃

◆Carry out 2000cycles

5

Discharge cut-off voltage

10.0V

10.0V( recommended)

6

Charging cut-off voltage

14.8V

14.6V (recommended)

7

Cell and assembly method

IFR26650EC 3.3AH

4S21P

8

Housing material

ABS+PC housing

9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

10

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V

11

Maximum Charge Current

1C

(0.2C Recommended)

12

Continuous Discharge Current

1C

Peack Discharge Current

5C

13

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Discharge: -10~60℃

14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

15

Weight

Approx:7.2Kg

16

Max.Dimension

Height:196mm

196*166*175mm

Width: 166mm

Length: 175mm

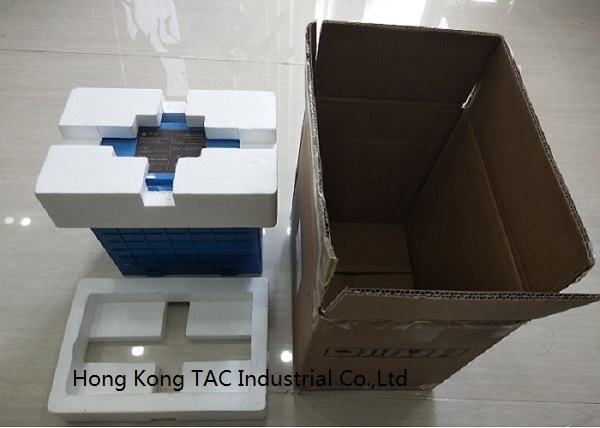

Package Manner

The big capacity battery pack should be protected by specially sponge pallet and put it strong export carton

Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

Application

Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV

12V 70ah LiFePO4 Battery Pack Picture

Deep Cycle Lithium Battery 12V 70ah LiFePO4 Battery Pack with BMS For EV
