3U Low-Voltage Intelligent Control Home Energy Storage All-in-One Butler LiFePO4 51.2V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 3.2V

Name: 3U LowVoltage Intelligent Control Home Energy Storage AllinOne Butler LiFePO4 512V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 32V
Brand: Sunland
Price: 1 USD

China 3U Low-Voltage Intelligent Control Home Energy Storage All-in-One Butler LiFePO4 51.2V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 3.2V wholesale

Brand Name : Sunland

Certification : UN38.3 MSDS

Place of Origin : GUANGZHOU CHINA

MOQ : Negotiable

Price : Negotiable

Supply Ability : Negotiable

Delivery Time : Negotiable

Packaging Details : Carton with protective liner 1pcs/CTNS, 60pcs/PLTS, 600pcs per 20’ container

Contact Now

Low-voltage rack-mounted household energy storage (3U)

1. Model Description

1.1 Battery Type: LiFePO4
1.2 Battery Model: HX-LTL-51.2/100

2. Basic Parameters

No.	Item	Specification	Remarks
Cell Parameters
1	Battery Type	Prismatic LFP Battery with aluminum shell	-
2	Rated Voltage/Capacity	3.2V/100Ah	-
3	Voltage Range	2.00V - 3.65V	-
4	Weight	2kg	-
5	Dimensions	173.9 × 48.8 × 115.6 mm ± 0.5mm (L × T × H)	-
6	Negative Material	LiFePO4	-
7	Positive Material	Graphite	-
8	Electrolyte Material	LiPF6	-
9	Operating Temperature	Charging: 0℃ to 55℃, Discharging: -20℃ to 55℃	-
10	Storage Temperature	0℃ to 45℃	-
11	Cycle Life	> 4000 cycles (0.5C, 25℃, 80% Depth of Discharge)

Basic Parameters of Battery System

No.	Item	Specification	Remarks
1	Nominal Voltage	51.2V	-
2	Configuration	16S1P (16 cells in series)	-
3	Voltage Range	40V - 58.4V <br> Cell Voltage Range: 2.5V - 3.65V	-
4	Nominal Capacity	100Ah	-
5	Standard Charge/Discharge Current	50A	-
6	Nominal Energy	5120Wh	-
7	Maximum Charge Current	100A (1C)	-
8	Maximum Continuous Discharge Current	100A (1C)	-
9	Peak Discharge Current	200A <br> Duration: 30s	-
10	Cycle Life	> 4000 cycles <br> (80% Depth of Discharge, 0.5C, 25℃)	-
11	Total Weight	46.0kg	-
12	Relative Humidity	10% - 90%	-
13	Cooling Method	Natural Cooling	-
14	Operating Temperature	<br> Charging: 0℃ - 55℃ <br> Discharging: -20℃

BMS Specifications

Item	Content	Standard
Charge/Discharge Ports	Shared	-
Communication	RS485/CAN	-
Parallel Connection Capability	≤16 units	-
Series Connection Capability	Not applicable	-
Standard Current	-	-
Charge Current	≤100A	-
Discharge Current	≤100A	-
Overcharge Protection	-	-
Overcharge Protection Voltage	3.75 ± 0.03V	-
Overcharge Protection Delay	1.0s	-
Overcharge Protection Release Voltage	3.55 ± 0.05V	-
Overcharge Protection Release Condition	Disconnect charger	-
Maximum Charge Voltage	3.65 ± 0.05V	-
Overdischarge Protection	-	-
Overdischarge Protection Voltage	2.2 ± 0.05V	-
Overdischarge Protection Delay	1s	-
Overdischarge Protection Release Voltage	2.7 ± 0.10V	-
Overcurrent Protection	-	-
Overcurrent Protection Current	900 ± 200A	-
Overcurrent Protection Delay	10ms	-
Overcurrent Protection Release Condition	Disconnect load	-
Short Circuit Protection	YES	-

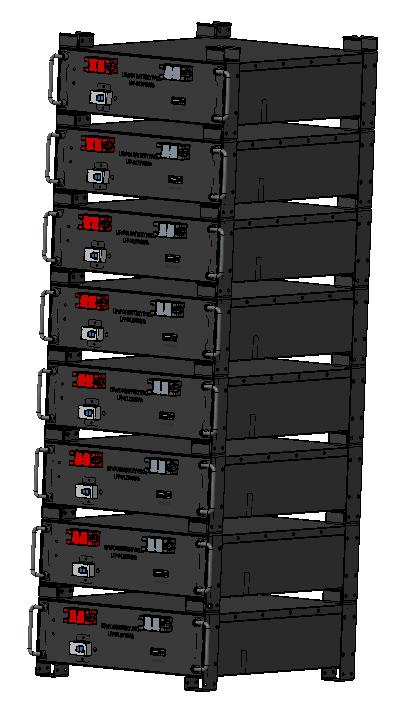

4. Product Appearance and Dimensions

Dimensions (L × W × H): 550 ± 1 mm × 440 ± 1 mm × 135 ± 1 mm

3U Low-Voltage Intelligent Control Home Energy Storage All-in-One Butler LiFePO4 51.2V 50A 5120Wh16S1P Prismatic LFP Battery with aluminum shell 3.2V
